Film Deposition System

Process Control System for Film Deposition Tool

Posted in LabVIEW, Manufacturing Automation and Intelligence, Semiconductor, Telecommunications, Test & Measurement Automation

Summary

DMC developed a process control and monitoring system for a thin film deposition tool.

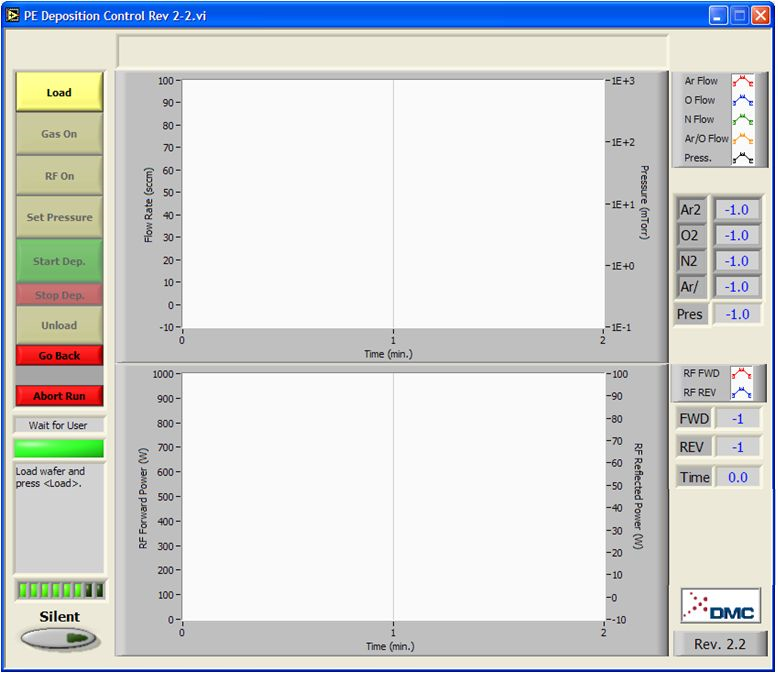

Process Control Software

Process Control Software

Solution

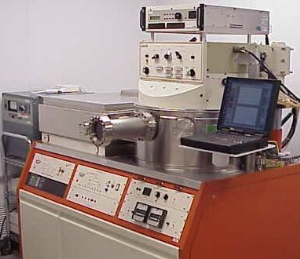

DMC designed and developed a custom process control and monitoring system upgrade for a Perkin Elmer film deposition tool used for reactive RF sputtering of oxide thin films for optical device applications. Prior to this effort, the tool was used in a completely manual mode, relying on the operator to manually setup, start, monitor, and stop all processing equipment. Using National Instruments LabVIEW software with NI Fieldpoint hardware, DMC was able to fully automate the most labor intensive functions of the system.

The software system starts and controls the RF plasma generator, balancing electronics, mass flow controllers, and chamber pressure controller. As a result, configuration of the system involves only loading of a substrate and selection of the required deposition recipe, as opposed to setting multiple configuration settings. During deposition, the software continually monitors the process, logs measured parameters, and checks process variables for alarm conditions. The application also can automatically shut down the system after an alarm or at the specified process time.

Customer Benefits

  • Improved product quality, process accuracy, and repeatability through enforcing process flow, statistical process control (SPC), and automated process timer
  • Reduced operator labor time and operator error potential due to recipe system and automated startup
  • Added traceability resulting from logging of process data

Technologies

  • NI LabView
  • NI Fieldpoint
  • NI VISA
  • RS232 Serial
