Dynamometer Control and Data Acquisition System

Posted in Automotive, Embedded Development & Programming, LabVIEW, Manufacturing Automation and Intelligence, Motion Control, Product Development, Test & Measurement Automation

Summary

DMC created an application for dynamometer control, data acquisition, and automated testing for a developer of high end dynamometer systems.  The application, was deployed on a portable motorcycle dyno system to be used for optimizing fuel mappings and other performance tuning of custom bikes.

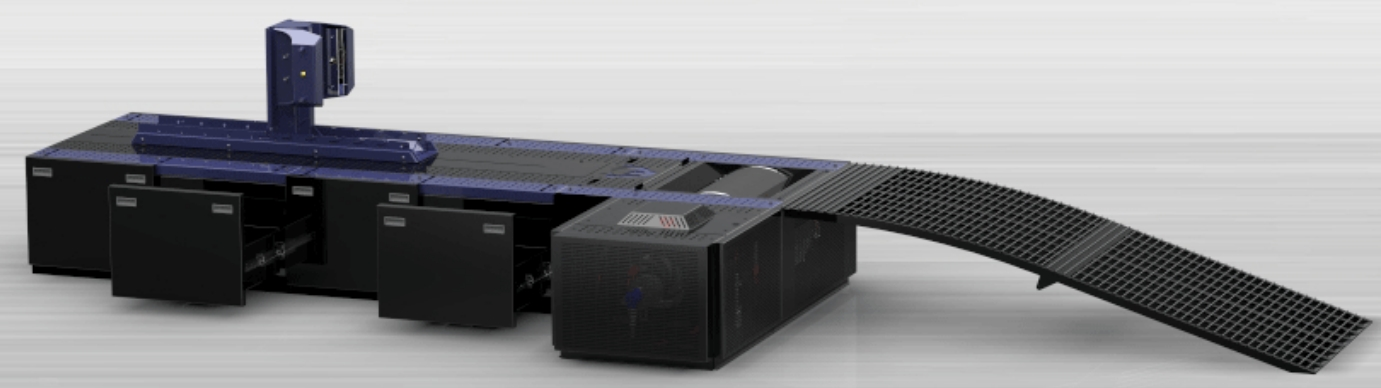

Full Motorcycle Dynamometer

Full Motorcycle Dynamometer

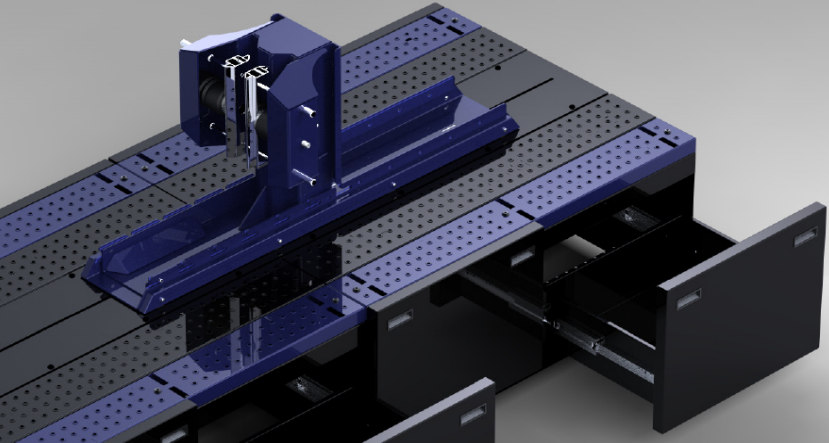

Dynamometer Wheel Clamp

Dynamometer Wheel Clamp

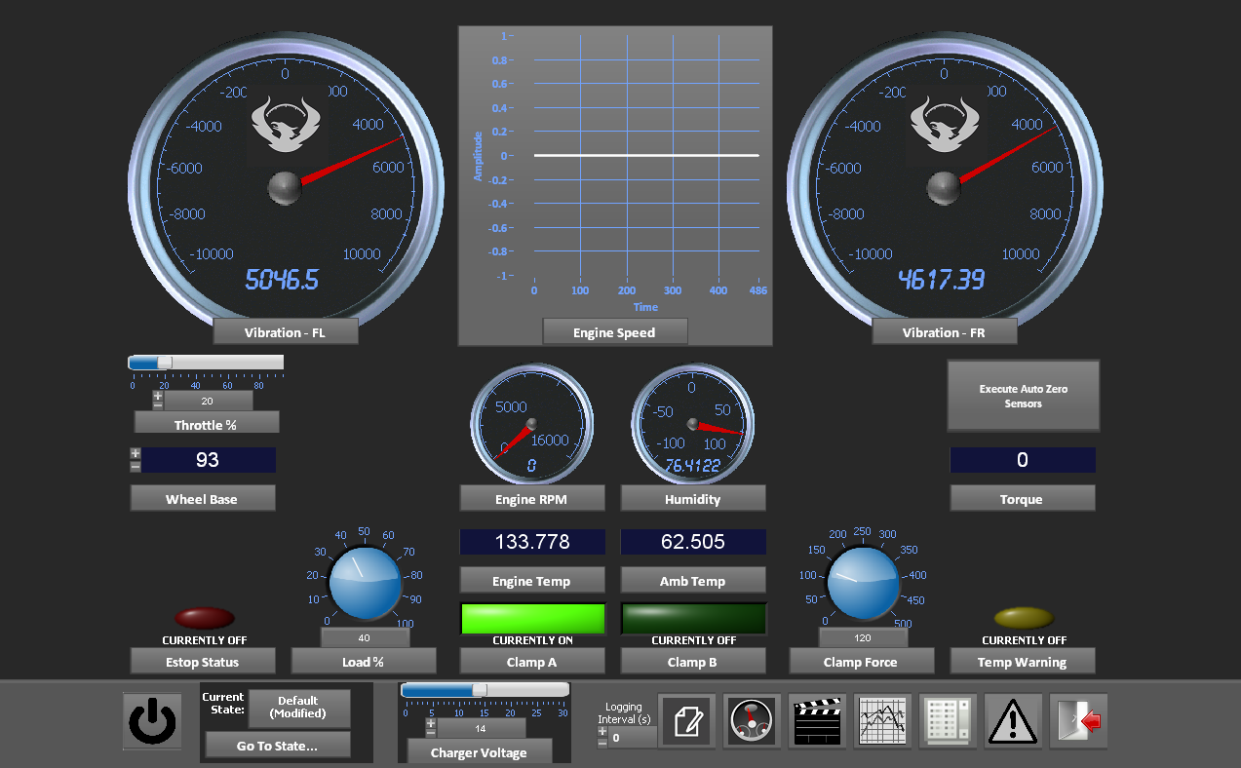

Dashboard User Interface

Dashboard User Interface

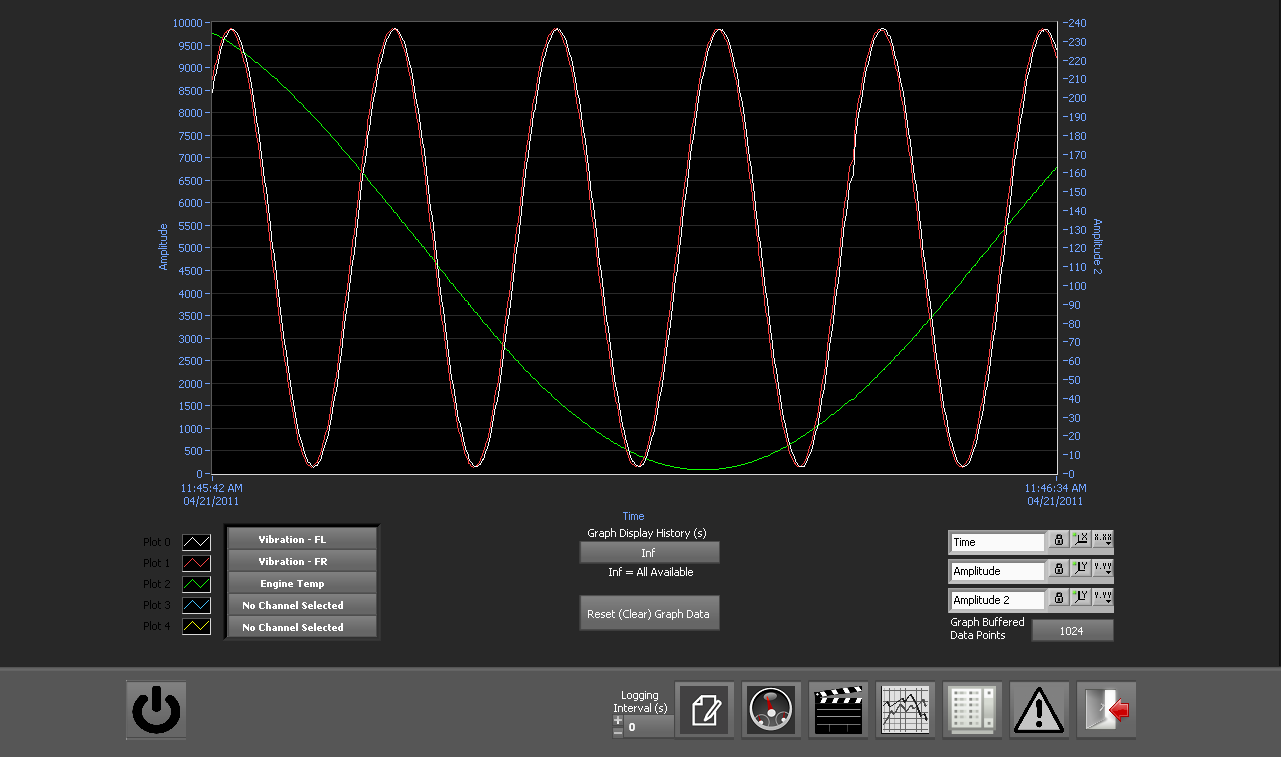

Real Time Plotting

Real Time Plotting

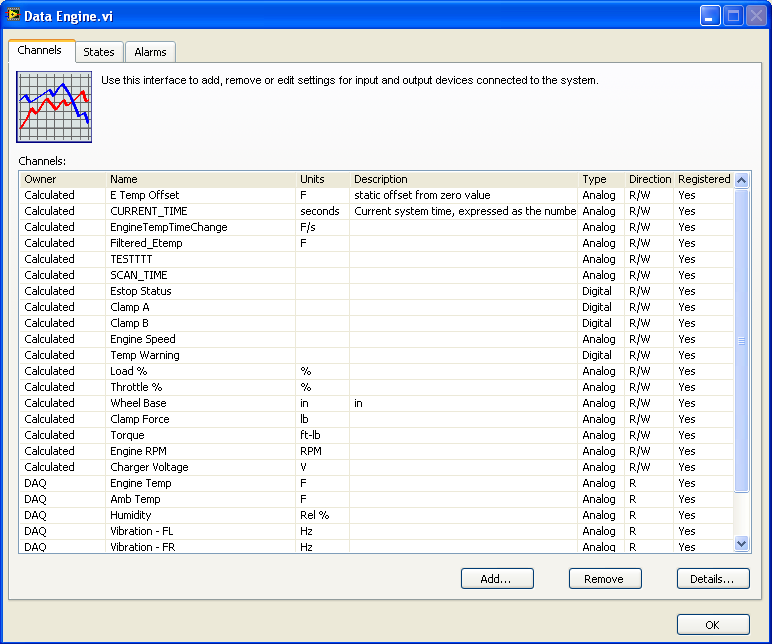

Channel Configuration Interface

Channel Configuration Interface

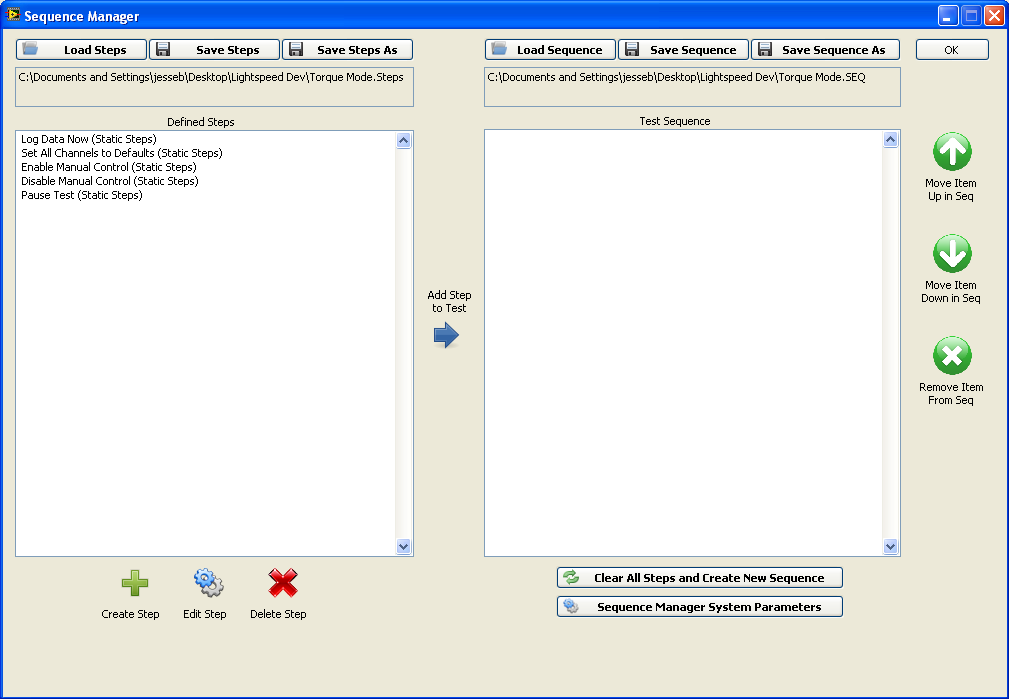

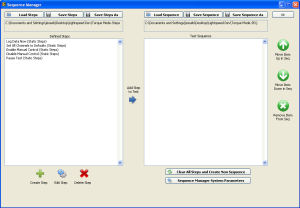

Sequence Manager Interface

Sequence Manager Interface

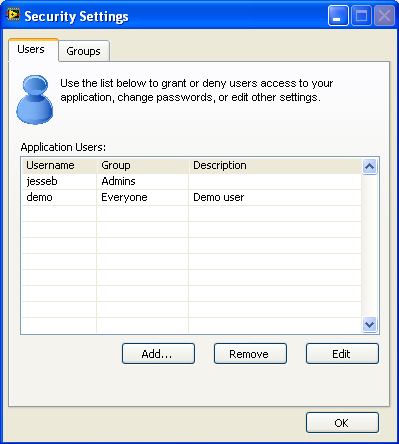

User - Group Configuration

User - Group Configuration

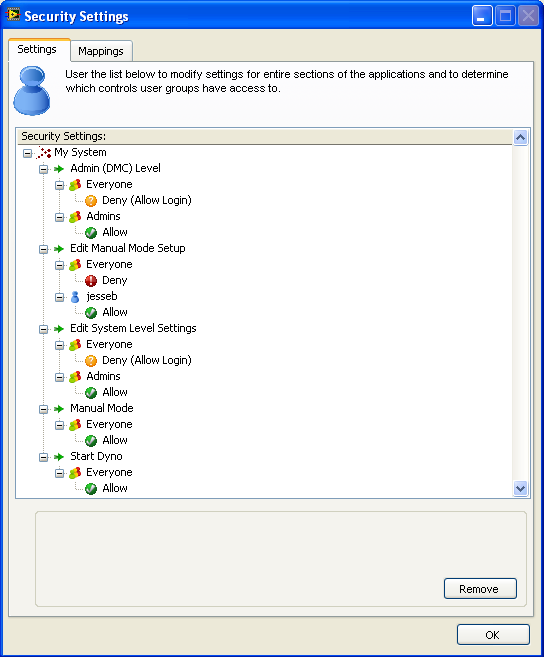

Security Permissions Configuration

Security Permissions Configuration

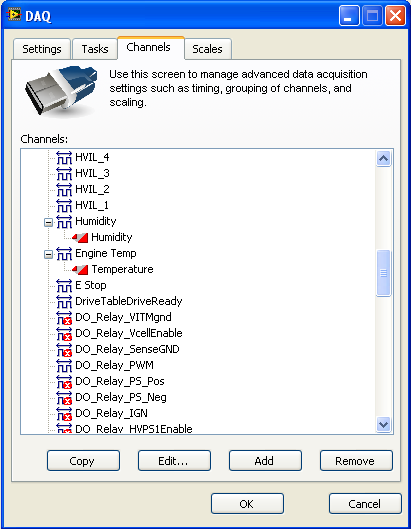

DAQ Hardware Configuration

DAQ Hardware Configuration

Solution

DMC developed a LabVIEW application to perform both automated and manual control of the various dynamometer systems designed by the Client.  The application monitors and controls dynamometer operation via a low-cost multifunction NI USB DAQ module.

The Client requested that DMC develop "a LabVIEW program that doesn't look like LabVIEW", and this is exactly what was delivered in the application.  The goal was to avoid the gray industrial panel appearance that all too often typifies many rudimentary LabVIEW applications in an effort to uniquely differentiate the Client's systems and provide them with a competitive advantage in the marketplace.  The main application menus and configuration interfaces incorporate familiar windows system style dialogs, buttons, and menus.  When control of the dynamometer is activated, a customized full screen dashboard style display is presented to allow the user to monitor all dynamometer activity in real time and to either perform direct manual control or initiate automated sequences through a variety of sleek controls and indicators.

The actual dynamometer hardware is highly abstracted from the control application through a broad range of configuration tools.  This allows a single version of the application to control the vast range of dynamometer designs that the Client is developing, simply by using the built-in configuration tools to set up input/output/calculated channels, automated procedures, and the dashboard user interface display as appropriate for a given dynamometer design .  Indeed, in addition to dynamometers, the application is actually extensible enough to control and monitor quite a large range of electro-mechanical machines and systems with little or no additional development required.

To build upon the extensive DAQ channel configuration and scaling features built in to NI MAX, DMC developed a set of tools that allows the application to integrate directly with the NI MAX configuration database.  Changes made to the hardware configuration from within the application are automatically synchronized with the NI MAX database, and visa versa.

The application includes a Sequence Editor for managing automated test procedures or commonly performed series of steps (effectively "macro" operations).  The dynamometer system can be controlled in one of three ways:

1. Fully manual operation:  Dynamometer is controlled by user commands from the Dashboard User

2. Fully automated operation:  A predefined test profile or operating procedure is executed as a sequence of steps initiated by one click from the user.

3. Hybrid (semi-automated) operation:  A predefined test procedure is running in the background, and may prompt the user to take specific actions when required.  Additionally, users can manually issue dynamometer control commands from the Dashboard User Interface that are processed in parallel to the automated procedure.

Learn more about DMC's LabVIEW expertise.

Customer Benefits

  • Configurability:  Create and configure all DAQ channels and scaling within the Lightspeed application
  • Calculation / Analysis: Create calculated, filtered, differentiated, and PID control channels via simple formula editor interface.
  • User Interface Customization:  Admin Users can fully configure dashboard UI layout, channel display, styling / coloring from within runtime application
  • User Permissions:  Create and manage user accounts and groups, and set permissions to perform any system operation on by-user or by-group basis
  • Automated Testing: Flexible sequence configuration interface allows general operation steps to be arranged into powerful test / macro sequences
  • Visualization:  Interactive real-time data plotting of any dyno data channels, with ability to zoom time focus, toggle displayed channels, and configure plot styles
  • Visual Appeal:  Windows system style menu control and operation create a familiar setup interface, while full screen dashboard style control interface provides immersive environment for operator interaction with system.
  • Data Logging:  Log desired data channels at configurable rate into human readable report, with easy import into advanced post-analysis applications.
  • Extensibility:  Software architecture is highly abstracted from actual dynamometer system hardware, allowing application to be used for vastly different dynamometer designs, or even control of completely different types of electro-mechanical systems.
