Industrial Brush Generator

Industrial Brush
Posted in Application Development, Consumer Goods, Embedded Development & Programming, Manufacturing Automation and Intelligence, PC Application Development, Product Development

Summary

DMC developed software that allowed engineers to design head patterns for industrial brushes. The brush pattern designed could then be downloaded to a brush generation system which manufactured the design.

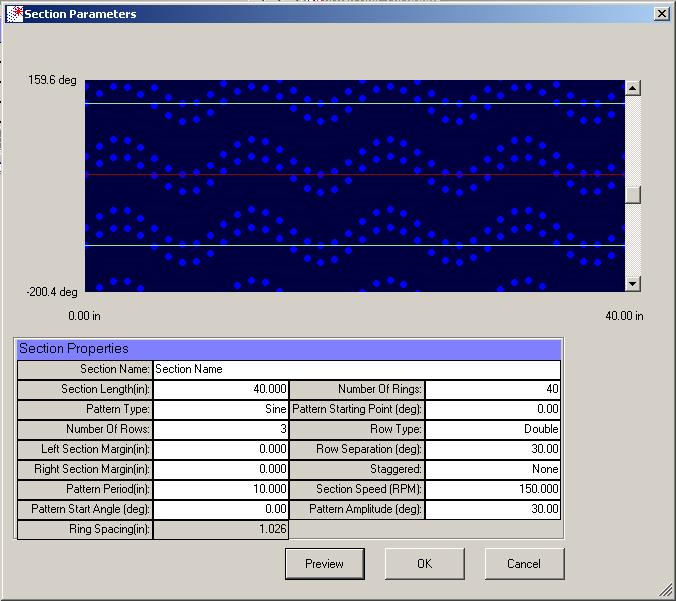

Brush Editor

Brush Editor

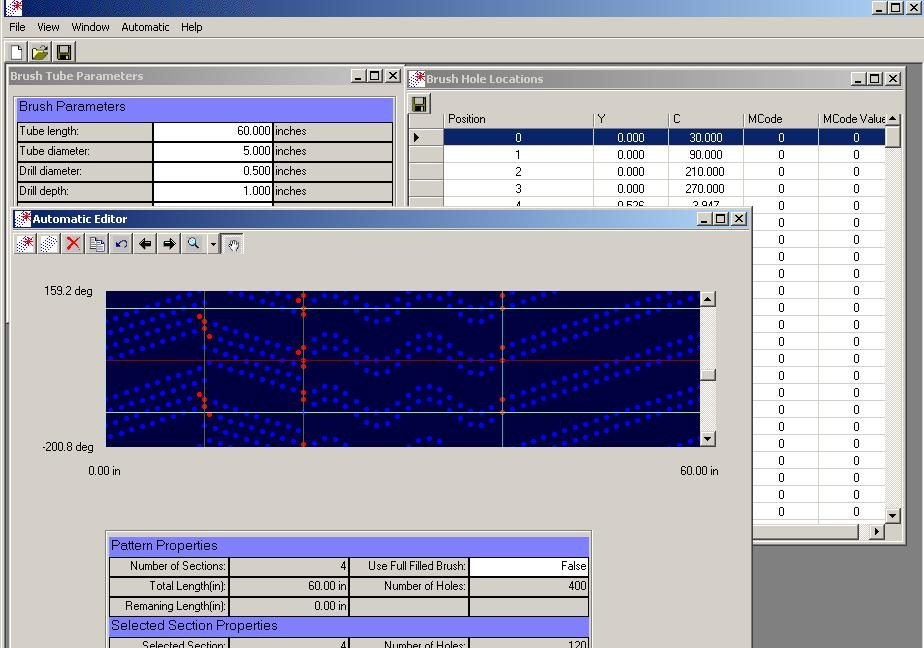

Brush Overview

Brush Overview

Solution

DMC developed software which allows engineers to design the head pattern for the bristles on industrial brushes. Basic brush patterns can be generated by specifying parameters such a slope angle, bristle density, section width, and stagger type. These patterns can then be edited manually to add, remove, or relocate individual points. After the patterns are generated, they can be downloaded to a brush generation system which manufactures the brush.

Customer Benefits

  • Flexible design interface facilitates innovative brush patterns that provided a competitive advantage from their uniqueness
  • Reduces product development time
  • Recipe management system for design enables fast system changeovers

Technologies

  • Microsoft Visual Studio .NET
  • C# .NET
  • SQL Server Database
