CNC Brush Bristle Insertion

Bristle Insertion
Posted in Consumer Goods, Manufacturing Automation and Intelligence

Summary

DMC provided electrical design and programming for a controller retrofit on a CNC bristle insertion machine.

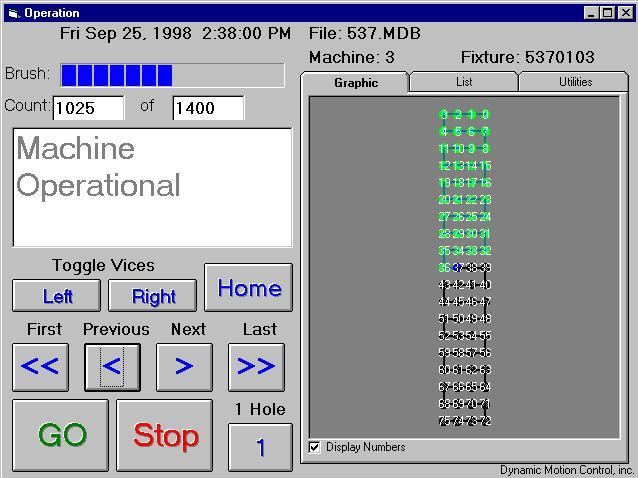

Operation Screen

Operation Screen

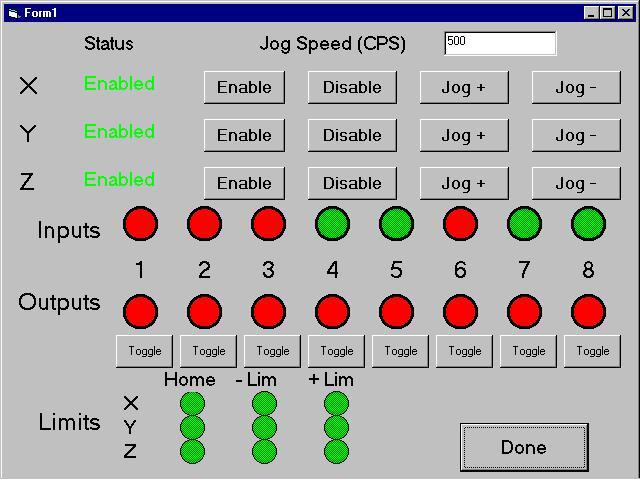

Status Screen

Status Screen

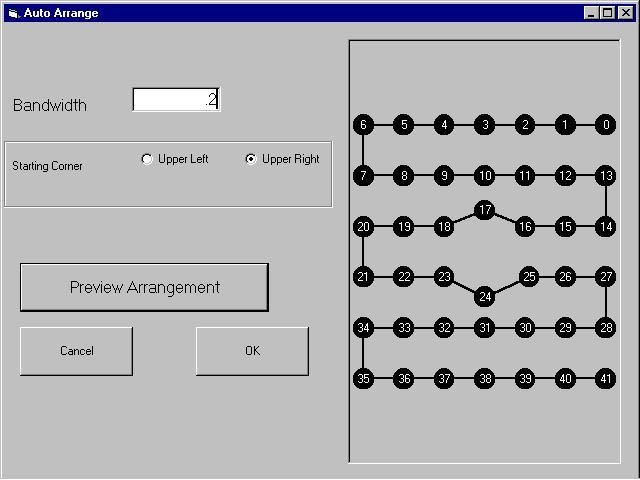

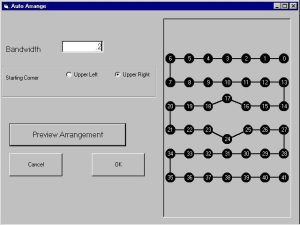

Arrangement

Arrangement

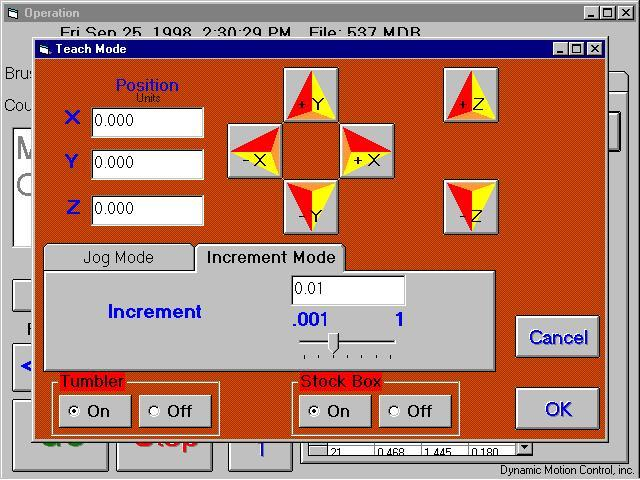

Teach Mode

Teach Mode

Solution

An XYZ table positions the brush under the bristle insertion head while the head is moved up and down by an AC motor. A drill on the right side of the machine creates the holes in one brush while bristle packets are inserted into a drilled brush on the left side of the machine. When the head is up, the table positions itself at the next hole position.  The flat panel HMI (Human-Machine Interface) screen displays progress, batch count, and diagnostic information and allows for modification of the graphically displayed bristle pattern. Switching from one pattern to another takes only seconds. Patterns can be generated on the machine or on another computer and the file can be transferred over network. All machine data is available over  the plant's network.

Customer Benefits

  • Reduces maintenance costs by eliminating expensive proprietary hardware
  • Increases productivity with easier job changeover
  • Improves production planning by offering integration into the plant information system

Technologies

  • Galil® DMC1730 PC bus motion control board
  • 3-axis position table
  • EXOR® industrial flat panel touch screen PC
  • Custom developed Microsoft Visual Basic® operator interface, pattern design, and graphical display software
