Why Hardware Abstraction Layers (HAL) Are Essential for Scalable Test Systems

Modern automated test systems often rely on a mix of instruments, devices, and custom hardware. Without a strategy to manage this complexity, your software becomes tightly coupled to specific hardware, making upgrades or replacements costly and time-consuming. Enter the Hardware Abstraction Layer (HAL): a design approach that uses classes and interfaces to create a common layer between your application and the hardware. Having written many test applications myself over the last decade, I’ve seen where customers can struggle in applying a HAL and what has worked well and yielded ROI for years to come.

What is a HAL?

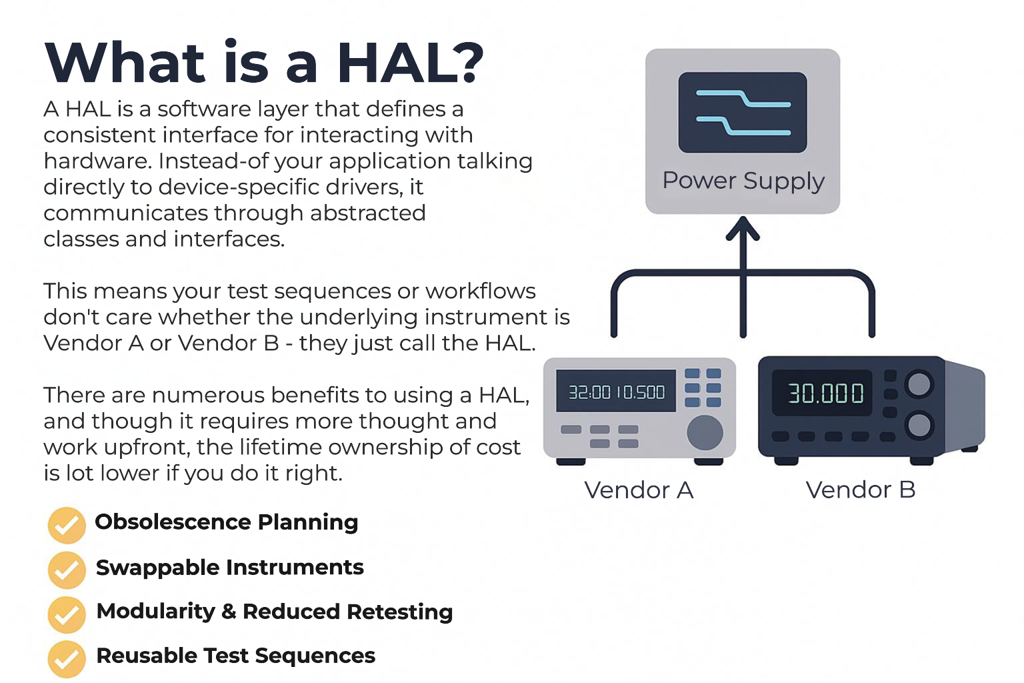

You probably already know this, but a HAL is a software layer that defines a consistent interface for interacting with hardware. Instead of your application talking directly to device-specific drivers, it communicates through abstracted classes and interfaces. This means your test sequences or workflows don’t care whether the underlying instrument is Vendor A or Vendor B: they call the HAL. There are numerous benefits to using a HAL, but too often, HALs are discussed in theory and promptly forgotten in practice. Though implementing a HAL requires more upfront work, the payoff over time is clear if you do it right.

Benefits of Using HAL

Let’s first highlight the major motivations behind a HAL. Some of these will resonate differently depending on what you’re automating and how you use your test system, but bottom line – most people can find at least a few reasons on this list to seriously consider a HAL:

• Obsolescence Planning – Replace hardware without rewriting your entire system.
• Swappable Instruments – Swap drivers, not test logic.
• Modularity & Reduced Retesting – Limit validation scope when hardware changes.
• Reusable Test Sequences – Apply the same concept to DUTs for flexibility.
• Faster Integration of New Hardware – Implement the interface, keep logic intact.
• Improved Scalability – Scale across stations with different hardware.
• Better Maintainability – Separate hardware and business logic.
• Vendor Independence – Avoid lock-in.
• Simulation & Virtual Testing – Mock hardware for early testing.
• Consistent Logging & Error Handling – Centralized diagnostics and data reporting functionality.

Pro Tip: You can apply the same abstraction concept to DUTs. Define a HAL for your product interface so test sequences can work with different models or variants without rewriting logic.

Challenges in Building a HAL

With all these benefits, you might wonder why HAL design is sometimes overlooked. The reality is that building a HAL comes with technical challenges. Wrapping third-party drivers and DLLs can be cumbersome, and the variability in device features often complicates interface design. Starting too early without multiple hardware options can lead to unnecessary complexity, while performance overhead in time-critical systems is a legitimate concern. Debugging and maintaining a layered architecture adds complexity, and versioning for backward compatibility requires careful planning. Testing the HAL itself and managing dependencies for drivers and licensing further increase the effort required. These challenges don’t negate the value of a HAL, but they can make implementing a HAL daunting unless you have the deep technical experience to avoid the pitfalls.

What Makes a Good HAL? Key Requirements Organized by SOLID Principles

To overcome these challenges and avoid costly mistakes in your HAL implementation, applying proven design principles is essential. The SOLID principles provide a strong foundation for building flexible, extensible software architectures. Here’s how the key requirements align with SOLID. If you follow these, you are well on your way to creating a maintainable and scalable HAL that your future self or team will thank you for.

• Interfaces for Flexibility – Use interfaces to handle cases where a device fits multiple classifications and cannot be modeled by a simple parent-child relationship.

Dependency Inversion Principle

• Depend on Abstractions – Ensure higher-level modules rely on interfaces, not concrete implementations, to maintain flexibility and reduce coupling.

Additional Cross-Cutting Requirements

• Error Handling & Diagnostics – Provide robust error codes or exceptions for hardware failures. Include logging hooks for debugging and traceability.
• Testability – Enable mocking or simulation of hardware for unit tests. Provide virtual HAL implementations for CI/CD environments.
• Documentation & Versioning – Clear documentation for APIs and supported hardware. Version control for HAL modules to manage compatibility.

Conclusion

A well-designed HAL is an investment in flexibility, scalability, and maintainability. It reduces risk, saves time, and ensures your test system can evolve with changing hardware and product requirements. While building a HAL requires upfront effort and thoughtful design, the long-term benefits far outweigh the initial cost.

Looking for More?

Check out our other articles on HALs, including some of our software frameworks that we use on customer projects that come with a HAL built-in:

• CORTEX Framework: Standardize Your Automated Test Systems—Without Starting From Scratch
• Flex Framework HAL: Streamline Hardware Configuration with the Hardware Abstraction Layer
• LabVIEW OOP-Based HAL: A Simple Hardware Abstraction using LabVIEW OOP

Want help designing a HAL? Contact us today to learn more about our solutions and how we can help you achieve your goals.
