Bed of Nails PCB Functional Test System

Bed of Nails PCB Functional Test System, Automotive Gauge Cluster Controller

Summary

Printed Circuit Board (PCB) functional testing is a critical process in electronics manufacturing. Embedded PCB devices are becoming ubiquitous in products, provide intelligence to everything from basic consumer goods to complex industrial equipment. DMC delivered a turnkey, dual fixture (2-up) PCB Functional test system to help our client validate a new product. Backed by National Instruments TestStand, DMC applied LabVIEW test code and sequencing to automate the production testing of an automotive gauge cluster controller. With the capability of custom LabVIEW tools and the power of NI TestStand’s batch process capability, DMC provided a parallelized test platform to handle the production rates of the automotive product. The system included a custom-designed fixture tailored to the specific device under test. DMC delivered a flexible fixture design with the ability to adapt new nest configurations should future product demands and features change. The combination of flexible hardware and customizable software ensures the greatest longevity of the test solution investment.

Solution

DMC’s PCB functional test solution integrates National Instruments test and measurement technology with a flexible fixture design to ensure the system (and investment) is ready to adapt as new requirements are identified.

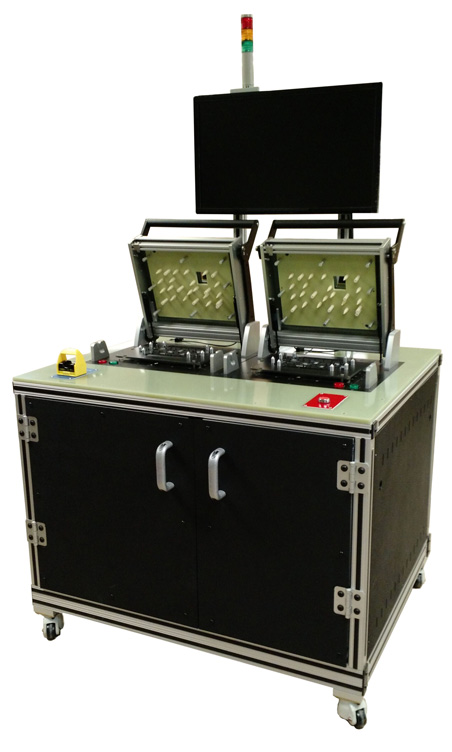

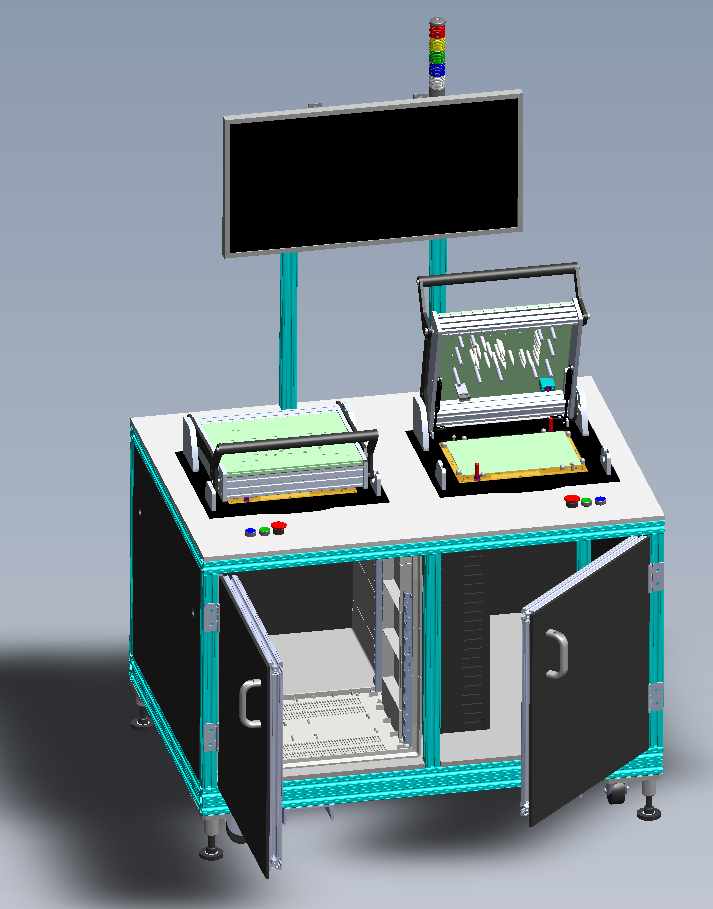

The gauge cluster PCB functional test system (pictured on the right) highlights DMC’s ability to deliver fully integrated turnkey test applications. DMC takes pride in assembling strategic, skilled, multi-disciplinary teams that combine DMC’s vast engineering and software development capabilities.

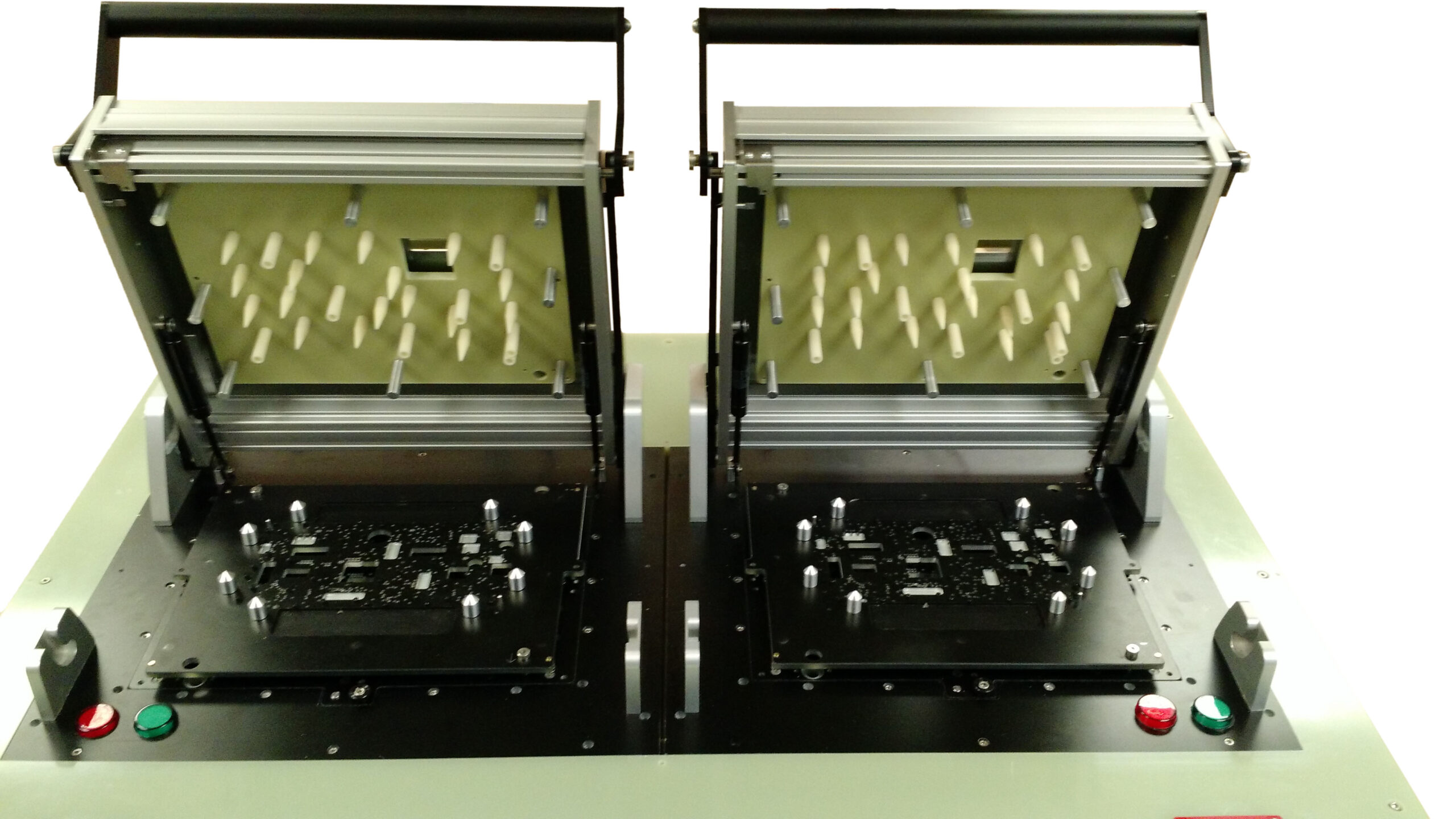

The test system provides complete product test and verification capabilities. It can download firmware and preform pre-power up, open/short verification, communication bus, and power consumption testing. At the heart of the test system lies an NI PXI chassis and multiple measurement devices, including a dual-channel power supply, source measurement unit, CAN communication cards, and switch matrix.

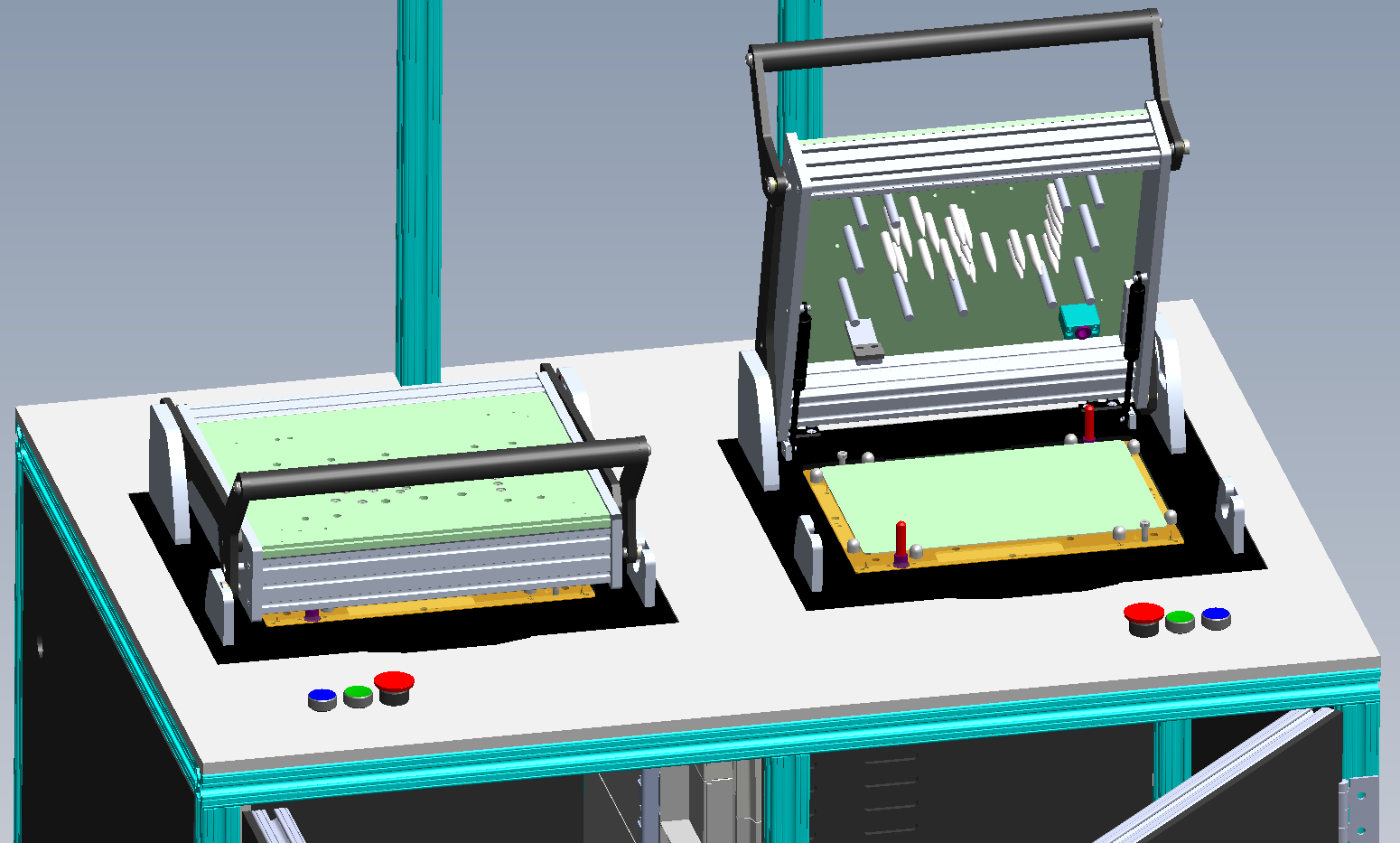

Bed of Nails PCB Functional Test System

DMC developed a LabVIEW application that allows flexible test sequencing across different test stands. In addition, we integrated generic PC peripherals with the LabVIEW application to ensure that high-level functionality of common interfaces (Ethernet, USB, and Serial) was verified. Pairing precision instruments with everyday IO in a custom test sequence allowed for end-to-end product testing and was made possible by the NI TestStand development platform.

The test system is also fully integrated with a Microsoft SQL server database to ensure compliance with modern production requirements. Database-level traceability, especially in the automotive industry, allows manufacturers to confidently and securely store production data with ease of recall for internal reporting or external audit. SQL offers an extensive toolchain for custom data analysis and process performance analysis to ensure the system continues to run reliably throughout its lifecycle.

PCB function test systems are prevalent in modern production environments. Today, Embedded PCB devices have many sub-systems, so achieving complete test coverage with automated test solutions can be demanding. By utilizing a flexible hardware design, customizable software technologies, and partners with the expertise to integrate the system components, manufacturers can ensure a highly productive and effective path to delivering high-quality products.

Learn more about DMC’s Test and Measurement and Embedded expertise and contact us for your next project.

Customer Benefits

  • Turnkey Production Test Cell
  • Parallelized operation, improved throughput
  • Customized software platform, pairing LabVIEW and NI Test Stand
  • Flexible fixture design for future DUT model scalability
