End-of-Line Test: What to Do with All that Data?

When most organizations invest in an End‑of‑Line Test (EOLT) system, the focus is almost always the same: Get reliable measurements, separate good parts from bad, and get the production line running. That focus makes sense. EOLT systems are often capital-intensive, and the pressure to hit launch dates, ramp production, and keep scrap low leaves little room to think beyond the immediate task. Every test engineering manager has lived through this moment:

• The fixture is finally working. The measurements are stable. The limits are all set.
• The PLC handshakes don’t fault out. Operators are trained, and parts are flowing.

Everyone celebrates because they should. Getting a new EOLT station deployed is hard work. But then something predictable happens: All the long-term improvement ideas, especially around data management, get pushed to “Phase 2.”

“We’ll come back to the data piece later.”

“Let’s get production stabilized first.”

“We’ll handle reporting in the next budget cycle.”

Except… “later” almost never comes. Once the line is running and hitting daily takt numbers, the momentum shifts to the next urgent project. The data pipeline, how results are stored, validated, structured, analyzed, or even found later, quietly fades into the background.

Meanwhile, the EOLT system is generating an enormous amount of valuable information. Every single test run produces signals that could help improve capability, reduce escapes, diagnose warranty returns, or drive Six Sigma improvements. But unless someone deliberately builds a usable data pipeline, those insights disappear into a pile of CSV files, neglected SQL tables, or are not collected at all.

This blog is about that forgotten half of EOL testing, and what you can do to finally unlock the value that’s already sitting in your factory.

Why EOL Data Is So Important, and So Underutilized

There’s often a huge gap between what leaders think is happening with EOLT data and what’s actually happening on the ground. The expectations typically sound like this:

“We’ve been keeping our test data stored somewhere.”

“It can be accessed by Quality whenever required.”

“We’ll be using this data for SPC once we stabilize production.”

“There’s another project that will be following this one to create dashboards.”

“This data has been cleaned and sorted already.”

In theory, the data is being scrubbed, validated, indexed, archived, and correlated with part numbers, revisions, and operators. And ultimately, used to improve the business. But the reality is usually very different. In most factories, this is what actually happens:

• Data is saved in inconsistent formats by different test stations and engineers.
• Pass/Fail Limits are not version-controlled.
• SQL tables live on a local PC with no backups.
• CSV files pile up in folders named “temp,” “new,” or “old system.
• Dashboards and data portals never get built.
• Phase 2 never gets funded.

And even when data is stored, it’s often impossible to use:

• Test records include missing or mismatched fields.
• Metadata (revision, operator, equipment ID) is missing.
• Time stamps are inconsistent or incorrect.
• No one knows how to open a *.TDMS file.
• Data is unvalidated, unstructured, and untrustworthy.

Engineers want to use EOL test data, but the pipeline isn’t there. The result, EOLT data becomes “digital exhaust” instead of actionable insight.

What’s most concerning isn’t the volume of information generated, but the value it represents. Every EOLT run provides a window into the capabilities of your process, the state of your design, and the variance in your manufacturing operation. Essentially, it’s the best way for you to keep an eye on the quality of your manufacturing process.

However, without a defined path to capture, structure, and analyze this data, its value is lost, leaving critical insights on the production floor.

What You Could Be Doing with Your EOL Test Data

Your End-of-Line tester should do more than just tell you whether a part passed or failed. When that data is captured, organized, and connected across teams, it can become a powerful tool for improving quality, reducing waste, speeding up production, and making better engineering decisions.

A few of the highest-value ways to use EOL test data include:

• Catch process drift before it becomes a problem – By tracking key measurements over time, teams can spot trends, shifts, or out-of-control conditions before they lead to scrap, rework, or customer escapes.
• Understand whether your process is truly capable – Capability studies help show whether your process is consistently meeting specifications—not just passing tests, but doing so with enough margin and stability to build confidence.
• Make better decisions with trusted measurements – If the measurement system is not repeatable or reliable, the data can point teams in the wrong direction. Connecting MSA data with production results helps prove that the numbers can actually be trusted.
• Enhance testing boundaries and eliminate false failures – Information from previous EOL results can help a team improve their testing parameters, strengthen their weak spots, and ensure they don’t reject good items. It also helps to establish an audit trail for parameter changes.
• Reduce cycle time by removing low-value tests – Not every test adds equal value. By looking at fail rates, test duration, and correlation to real defects, teams can identify tests that may be redundant, rarely useful, or candidates for consolidation.
• Connect factory results to warranty and field issues – When EOL records are linked to returned parts or field failures, teams can identify early warning signs present during production. This can reduce warranty costs and help engineering improve future designs.
• Give each team the information they actually need – Operators, quality engineers, line leads, and product engineers all need different views of the same data. Role-specific dashboards and alerts help make sure the right people see the right information at the right time.
• Limits, set-ups, and software releases – It would be far more valuable if all EOL data could be tied to the specific test limits, set-ups, and software releases actually used during testing.

EOL test data is not just output data. When effectively utilized, it serves as a tool for process improvement, helping teams to enhance quality, minimize variations, reduce cycle times, and make sound product decisions.

The Reality: EOL Data Only Works If the Pipeline Works

Even the best measurements, fixtures, instrumentation, and limits won’t produce value if the data pipeline behind them isn’t healthy. And this is where most organizations quietly struggle.

An EOL test system is constantly generating signals: currents, voltages, timings, displacements, communication messages, temperatures, pressures, waveforms, vision metrics, operator interactions, PLC handshakes… the list goes on. But unless all of that information moves through a clean, reliable, structured pipeline, it becomes impossible to trust, access, or analyze later.

Most companies assume the pipeline will “take care of itself.” In practice, it does not. It requires planning, effort, and maintenance. Experience helps.

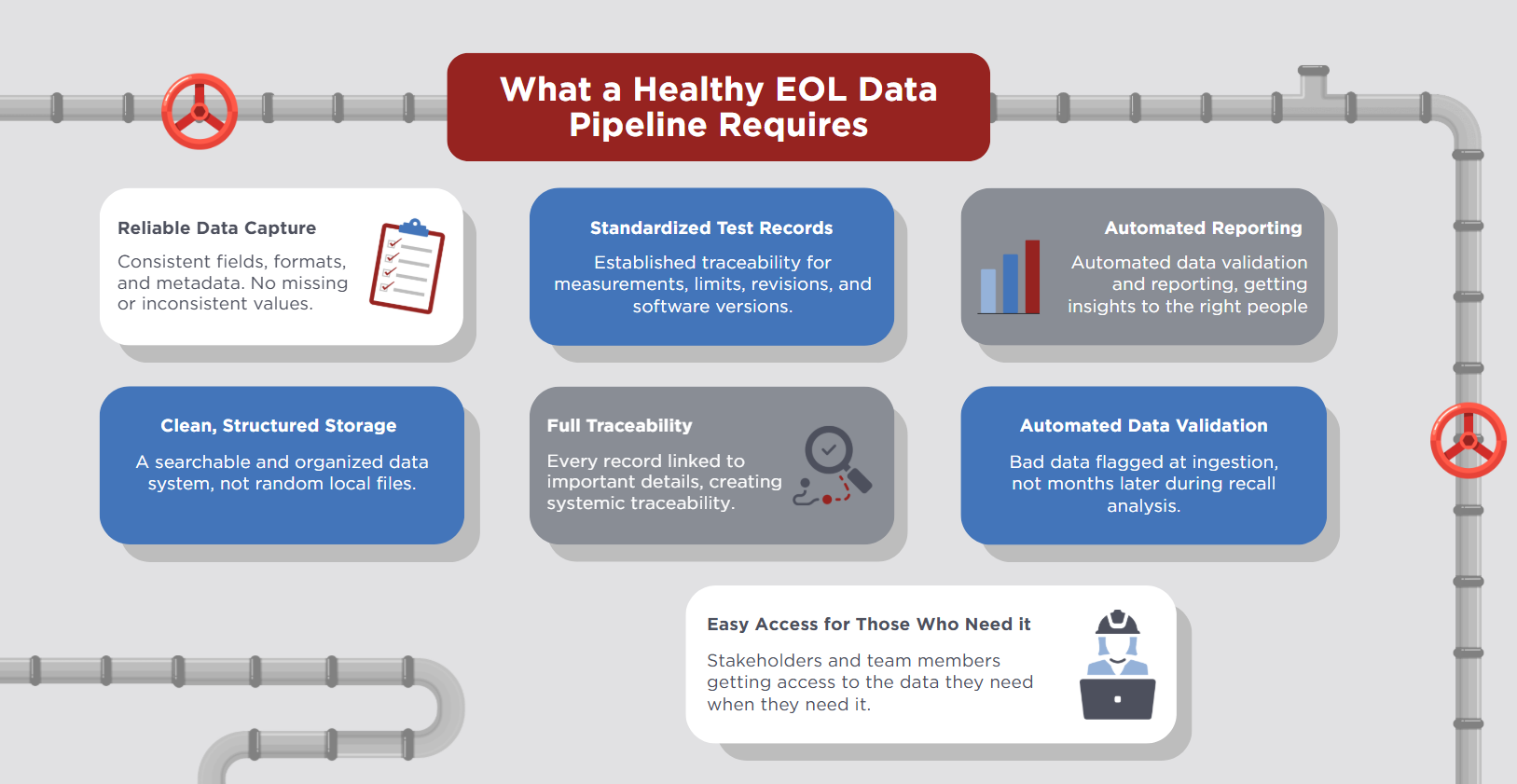

What a Healthy EOL Data Pipeline Requires

A robust pipeline needs several well‑defined components working together:

1. Reliable Data Capture – Every test must record the same fields, in the same format, with the same metadata. No missing values. No mystery columns. No different units for the same measurement.

2. Standardized, Versioned Test Records – Measurements, limits, station configurations, fixture revisions, and software versions must all be captured and traceable. When a number shifts, you need to know whether the product changed or the test changed.

3. Automated Reporting and Alerts – Data and analysis are worthless if no one sees it. A good pipeline pushes insights out automatically; it never waits for someone to “go pull the numbers.”

4. Clean, Structured Storage – Data needs to live somewhere durable and queryable (SQL, Azure, AWS, SystemLink, etc.). Not on a local PC. Not in a trove of CSVs on a network share. Not in arbitrary Excel files named “latest_results_FINAL2.xlsx.”

5. Full Traceability – Every record should connect back to the basics. Without this, you can’t trust the results: Serial number, Product revision, Limit set ID, Station ID, Operator, Test sequence version, Part configuration, Time and date, Equipment calibration status, etc.

6. Automated Data Validation – Bad records should be flagged at the moment of ingestion, not discovered months later during a recall analysis.

7. Easy Access for Those Who Need It – SPC needs Quality. Throughput/FPY needs manufacturing. Distributions/histograms need engineering. CAN logs need controls. Yield trends need leadership. Varied needs from varied perspectives, but they all point back to the same source.

Why Most Factories Don’t Get This Right

The underlying issue is simple: making the tester work gets all the attention, making the data pipeline work gets whatever scraps are left.

And typically, that means:

• Data “storage” is whatever the test automation vendor has implemented.
• Organizational structures evolve organically over the years and engineers’ careers.
• Important metadata is missing because it wasn’t captured from day one.
• EOL software revisions shift quietly without updating version fields.
• MES/ERP integrations never happen.
• Dashboards get deprioritized because “production is up.”

As products change, limits evolve, stations age, and operators come and go, the data slowly becomes inconsistent and disconnected. The further you go without a structured approach, the harder it becomes to fix the past, and the less likely the data will be trusted for meaningful decisions.

When the Pipeline Fails, Everything Downstream Fails

Without trust in the data, there’s no way to perform SPC analysis, capability study, limit adjustment, detect drift, troubleshoot warranty claims, shorten cycles, increase yield, or influence future design generations. Or, put differently: poor-quality data feeds make your cutting-edge EOL tester worthless – just a fancy go/no-go light.

And that’s a waste of capability and money. The moment you treat the EOL data pipeline like a business-critical process, test results transform from something that needs to be stored to something that can be learned from.

Why Companies Don’t Fix This, and Why They Should

1. EOL data projects are important, but rarely feel urgent

Most companies understand that better EOL data would help, but it often loses to more visible priorities like getting the line running, hitting takt time, passing audits, and shipping product. The problem is that once production stabilizes, “Phase 2” data improvements are easy to forget. By then, months or years of valuable production history may already be missing, inconsistent, or unusable.

2. Ownership is often unclear

EOL data usually sits between multiple groups: Quality, Manufacturing, Test Engineering, IT, MES vendors, and sometimes the system integrator. Because no single team clearly owns the data’s structure, quality, and usability, everyone assumes someone else is handling it. The result is fragmented data that may exist somewhere, but is not trusted or useful enough to drive real decisions.

3. Fixing the data pipeline is often one of the highest-ROI improvements available

Improving an EOL data pipeline usually costs far less than buying a new test system, but it can unlock major value: higher yield, lower scrap, better traceability, smarter test limits, shorter cycle times, and stronger warranty/root-cause analysis. When capital budgets are tight, this can be one of the smartest ways to get more performance out of the equipment a factory already has.

Conclusion: Stop Letting EOL Test Data Go to Waste

You don’t need a new tester to get new value. If your End‑of‑Line station is running but your data isn’t structured, trusted, or visible, you’re leaving yield, quality, and warranty savings on the table.

The fastest ROI today comes from transforming your EOL results into a clean, reliable pipeline that feeds SPC, capability, dashboards, and decisionmakers. It’s affordable; it doesn’t disrupt production, and it works with the equipment you already own—making it a smart move in tight capital years.

Maximize impact, treat the EOL data pipeline like a business process: capture consistently, validate automatically, store centrally, version limits/configurations, and surface insights to the right people. When you do, your tester stops being a pass/fail gate and becomes a continuous improvement engine.

Ready to explore our solutions? DMC specializes in modernizing EOL data without ripping and replacing hardware:

• Stand up a standardized results schema (with limit/config/software versioning)
• Build ingestion + validation pipelines from your existing testers
• Create SPC, capability, FPY, and spec margin dashboards
• Automate daily/weekly reports and alerts for quality and engineering
• Connect to MES/ERP and warranty/returns for closed‑loop learning

DMC’s Test & Measurement team routinely works in the latest test technology to help our clients uncover the value hidden in EOL test data. From NI software to Microsoft SQL Server, Ignition, Grafana and more, DMC can help you turn test data into a business intelligence asset.
