3 Ways AI Improves Real-Time Vision Inspection with Python

Real-time vision inspection has an unforgiving constraint: every product on the conveyor has to be analyzed before the next set of frames arrives. A pipeline that’s accurate but too slow is just as unusable as one that’s fast but wrong. Getting both requires deliberate optimization, which has historically been difficult, but using AI and Python together can make it much easier.

Here are three practical ways DMC has used AI and Python to optimize a real-time inspection system and deliver real results to our clients.

1. Profile Your Pipeline to Find the Bottlenecks

As you move from implementation to production, the slower parts of your code can become painful while remaining hidden. In fact, slow lines of code can show up in surprising places and, depending on how your pipeline is structured, have an outsized effect on your speed. The solution is to bring a magnifying glass to your code by profiling it.

I’ve been a heavy user of Jupyter notebooks inside VS Code, which allows me to use the AI coding agent of my choice to easily set up and run experiments against my inspection pipeline to understand how it runs in practice against specific examples and, more relevantly, how long each section of the pipeline takes to run.

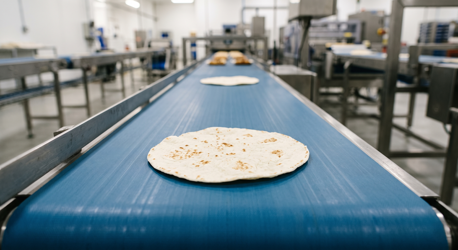

For example, one recent system DMC worked on involved belt masking. A client needed to inspect yellow tortillas moving down a blue conveyor belt, so we had to isolate each tortilla on each frame, separating it from the background for later steps in our analysis. The naive-but-useful approach we started with computed a full-resolution color distance, each pixel relative to the average color of the belt. This gave us a reference for what a functionally correct approach looks like, but profiling the code in conversation with AI showed us that it took up the majority of its time analyzing each frame.

2. Redesign Expensive Metrics to be Computationally Cheaper

Once you know which stage is slow, the next lever is the algorithms inside it. Many vision metrics have a naive implementation that’s accurate but expensive, and a smarter implementation that’s nearly as accurate and far faster.

After profiling the inspection system, we looked for ways to optimize it. A faster approach involved shrinking the frame by 50% on each side to reduce the number of computations by 75%. Comparing against the full-frame approach, we saw minimal reduction in accuracy. Additionally, by computing distances, we were performing a square root operation before comparing the distance to a threshold parameter; we could ditch that operation by squaring the threshold parameter and then comparing the squared distance, which sped up the process even further with no reduction in accuracy.

Eventually, we switched from checking RGB color distance to an axis-aligned range, which had similar accuracy while drastically reducing the computational load per frame. AI was vital here for quickly brainstorming and drafting these alternative formulations so we could compare their performance and accuracy.

3. Use Synthetic Data to Stress-Test Thresholds and Edge Cases

Optimization isn’t only about speed; it’s also about ensuring the system remains correct under pressure and across the full range of inputs. It’s hard to verify with only a handful of real images, which is often the case at the pre-deployment stage of a project.

Synthetic data can fill this gap. By generating test subjects across the entire pass/fail spectrum, including rare failure modes, you can stress-test thresholds and confirm the optimized pipeline still behaves correctly on edge cases.

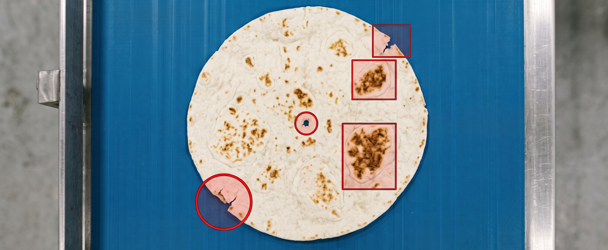

In our example of the tortilla inspection project, we used a Python script to programmatically generate AI images of tortillas with different levels and types of defects by varying the prompts. For example, each tortilla prompt was given a probability of having a prompt addition specifying a torn edge or a burn mark. After generating 100 tortillas, we used another script to create simulated footage of these tortillas moving down a looping belt texture, with added random noise and motion blur, which we then used to verify our pipeline’s capabilities before we had any real footage to work with. These efforts allowed us to deploy our code into production quickly for our client.

Conclusion

These threThese three practices work together to create a more efficient and reliable system:

• Profiling identifies where to focus your optimization efforts.
• Metric redesign speeds up slow stages exposed by your profiling.
• Synthetic data ensures your system remains accurate across edge cases.

Each of these stages has always been essential to vision inspection, but AI and modern coding tools have made them faster and easier to implement. Additionally, unlike certain uses of AI that have greater exposure to risk, like code implementation, using AI here is less likely to cause major faults in your system. That said, AI should be an accelerator, not a replacement for engineering judgment. It is essential to verify that AI-generated code is correct and aligned with system requirements.

Ultimately, the impact of these practices is clear. By combining these approaches, you can confidently improve the speed and reliability of your real-time vision inspection pipeline.
