LabVIEW is still one of the best environments for operator interfaces, machine state logic, and deterministic control workflows. However, many teams now need to ship features that evolve faster than traditional LabVIEW development cycles can accommodate, including computer vision, advanced analytics, AI-assisted decision support, and custom tooling.
The practical answer is not to rewrite everything. Instead, a split-runtime architecture allows teams to keep LabVIEW where it shines and move high-change computation into Python services connected over TCP.
This Python integration approach supports a wide range of industrial use cases, including:
- Vision inference and image analysis.
- Statistical quality calculations.
- Optimization and scheduling support.
- Report generation and data enrichment.
- AI-assisted engineering tools.
The end result is an architecture in which LabVIEW remains the orchestration and operator-layer interface for complex hardware systems, while Python hosts features that benefit from rapid iteration and rich libraries. One particularly salient reason to integrate Python in this way is that it integrates cleanly with the latest AI coding agents and tooling, supporting accelerated development.
Why TCP Is the Right Approach
There are multiple ways to connect runtimes, many of which DMC has explored across numerous domains. For example, we’ve worked with MQTT, RabbitMQ, NATS, Redis, as well as other messaging tools and protocols. In this tutorial, we use a simple request-reply pattern. Here, TCP is the best fit since it is:
- Language neutral: Both LabVIEW and Python support sockets natively.
- Low overhead: Efficient for frequent request/response cycles without added protocol information.
- Process isolated: UI/control failures and compute-service failures are easier to contain. No need to manage the lifecycle of a binary outside of two processes communicating with each other.
- Flexible in deployment: Run components on the same machine or distribute later without changing the contract.
LabVIEW Python TCP Reference Architecture
A reusable version of this request-reply pattern looks like this:
- LabVIEW gathers the request parameters and sends a typed request.
- The Python service receives the request and executes the requested logic.
- Python returns typed results plus optional status and timing metadata.
- LabVIEW processes the reply body as needed.
This same structural loop applies whether the compute workload is vision, forecasting, anomaly scoring, or rule evaluation.
Socket Wrappers for LabVIEW and Python Communication
This is a minimal implementation of a socket wrapper that serves as a skeleton you can use to add type safety, error checking, and other safeguards to make your code more robust. The wire format is a fixed header to ensure that reads are deterministic:
- LabVIEW to Python: 1 byte message type + 4 byte big-endian payload size + payload bytes.
- Python to LabVIEW: 4-byte big-endian payload size + payload bytes, since the message type defines the response.
import json
from enum import Enum
class Lv2PyMessageType(Enum):
ANALYZE_ANIMAL = 0
FETCH_WEATHER = 1
EXIT = 2
class LVSocket:
def __init__(self, sock):
self.sock = sock
def await_message(self) -> tuple[Lv2PyMessageType, bytes]:
msg_type = Lv2PyMessageType(int.from_bytes(self._recv_exact(1), "big"))
size = int.from_bytes(self._recv_exact(4), "big")
return msg_type, self._recv_exact(size)
def send_message(self, payload: bytes):
self.sock.sendall(len(payload).to_bytes(4, "big"))
self.sock.sendall(payload)
def _recv_exact(self, n: int) -> bytes:
out = b""
while len(out) < n:
chunk = self.sock.recv(n - len(out))
if not chunk:
raise ConnectionError("Socket closed")
out += chunk
return out
Service Loops
The service itself is just a while True loop: wait for a typed message, branch on it, compute, and send the reply. This pattern keeps the service logic straightforward and maintainable.
import socket
PORT = 12345
def analyze_animal(payload):
# parse the payload for this message and generate your response here
...
def fetch_weather(payload):
# parse the payload for this message and generate your response here
...
def serve(sock):
lv = LVSocket(sock)
while True:
msg_type, payload = lv.await_message()
if msg_type == Lv2PyMessageType.ANALYZE_ANIMAL:
result = analyze_animal(payload)
lv.send_message(json.dumps(result).encode("utf-8"))
elif msg_type == Lv2PyMessageType.FETCH_WEATHER:
result = fetch_weather(payload)
lv.send_message(json.dumps(result).encode("utf-8"))
elif msg_type == Lv2PyMessageType.EXIT:
break
if __name__ == "__main__":
with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
s.bind(("localhost", PORT))
s.listen()
print("Waiting for LabVIEW to connect...")
conn, addr = s.accept()
print(f"Connected by {addr}")
with conn:

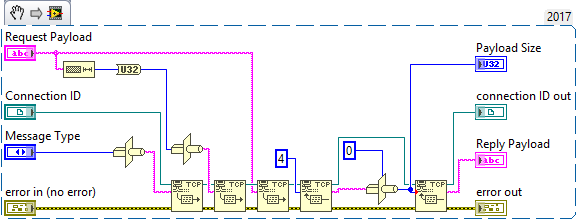

serve(conn)We can handle these messages from LabVIEW using the built-in TCP functions and pass a wide range of data in the message body.
Lifecycle Management

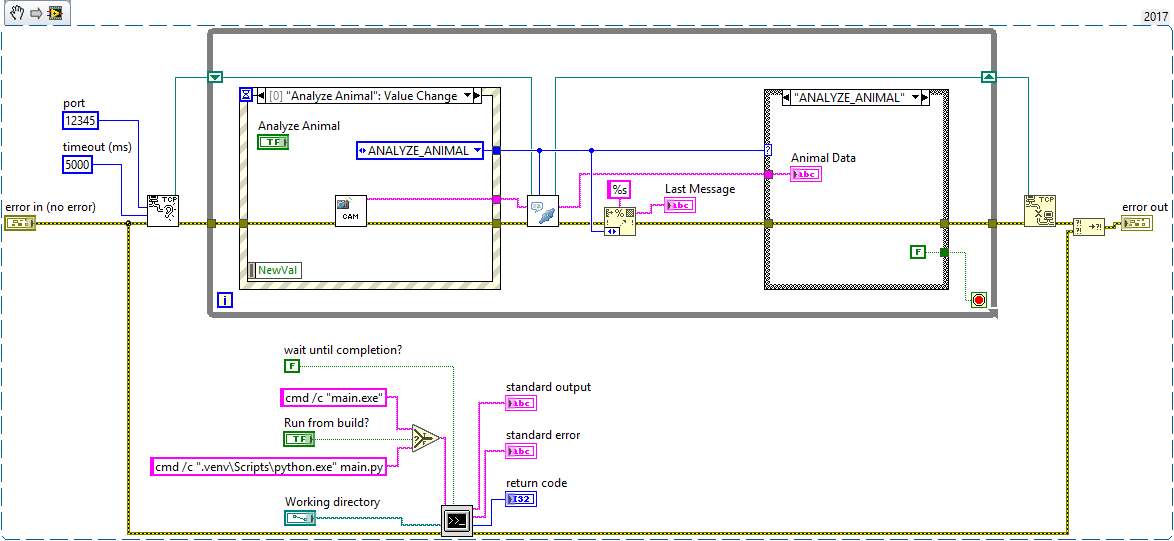

The next step is to start and stop our Python script along with our LabVIEW code while gracefully handling errors and exits. We can use the System Exec.vi function to accomplish this, as shown in the snippet below.
We can also safely manage the lifecycle of the Python script by, in addition to the EXIT message type, adding handling for socket disconnections by gracefully exiting the Python script if the socket is closed from the LabVIEW side. With this approach, operators can restart Python service, for any reason, by simply stopping and restarting the LabVIEW application, without needing to manage the Python process separately.
Packaging for Deployment
Finally, to deploy this architecture, package the Python script so it can be distributed alongside the LabVIEW build for client systems. This can be done with tools like PyInstaller, which creates a standalone executable from your Python script. You can then conditionally call this executable from LabVIEW using the System Exec.vi as shown below. This approach simplifies testing in development and deployment to production without needing to manage Python environments on the target machines.
Reliability Requirements for Production
Industrial systems need graceful behavior under real-world conditions, including dropped connections, overloaded services, and operator restarts.
Baseline reliability checklist includes:
- Request timeout and retry policy.
- Reconnect strategy with back-off.
- Health check or heartbeat message.
- Structured logs on both sides.
- Fail-safe startup and shutdown behavior.
- Logging of exceptions and edge cases for postmortem analysis.
These patterns are essential for production readiness, and they also build trust with operations teams by ensuring the system won’t fail silently or require manual intervention.
Why Integrating Python Matters for AI Adoption in LabVIEW Teams
This architecture also enables AI adoption. It allows teams to build key software components outside LabVIEW, where AI-assisted development can be faster due to:
- Rapid prototyping of analysis components.
- Quick generation of helper tools and scripts.
- Faster experimentation with algorithms and thresholds.
- Simplified profiling and optimization workflows.
LabVIEW still governs system behavior; Python becomes the iteration engine. This division allows teams to leverage AI productively while preserving control-system rigor.
Key Takeaways
- LabVIEW + Python over TCP is a reusable and extensible architecture pattern across many industrial use cases.
- Keep LabVIEW for orchestration and UI; externalize high-change compute to Python.
- The pattern creates a practical path for AI-assisted software development in industrial systems.
If you want to modernize an existing LabVIEW application, TCP-connected Python services are one of the highest-leverage places to start.
Partner with DMC to accelerate your next LabVIEW project.
DMC’s Test & Measurement experts can help you design and deploy robust TCP-based architectures tailored to your application.
